T1N Sprinter Suspension - Parts Catalog

Comprehensive parts catalog for Sprinter T1N (Mercedes-Benz, Dodge, Freightliner) suspension components, including control arms, knuckles, bearings, hubs, shocks, stabilizer bars, and springs.

Front Control Arms, Knuckles, Bearings, and Hubs

Explore detailed part numbers and specifications for front control arms, knuckles, bearings, and hubs for the Sprinter T1N.

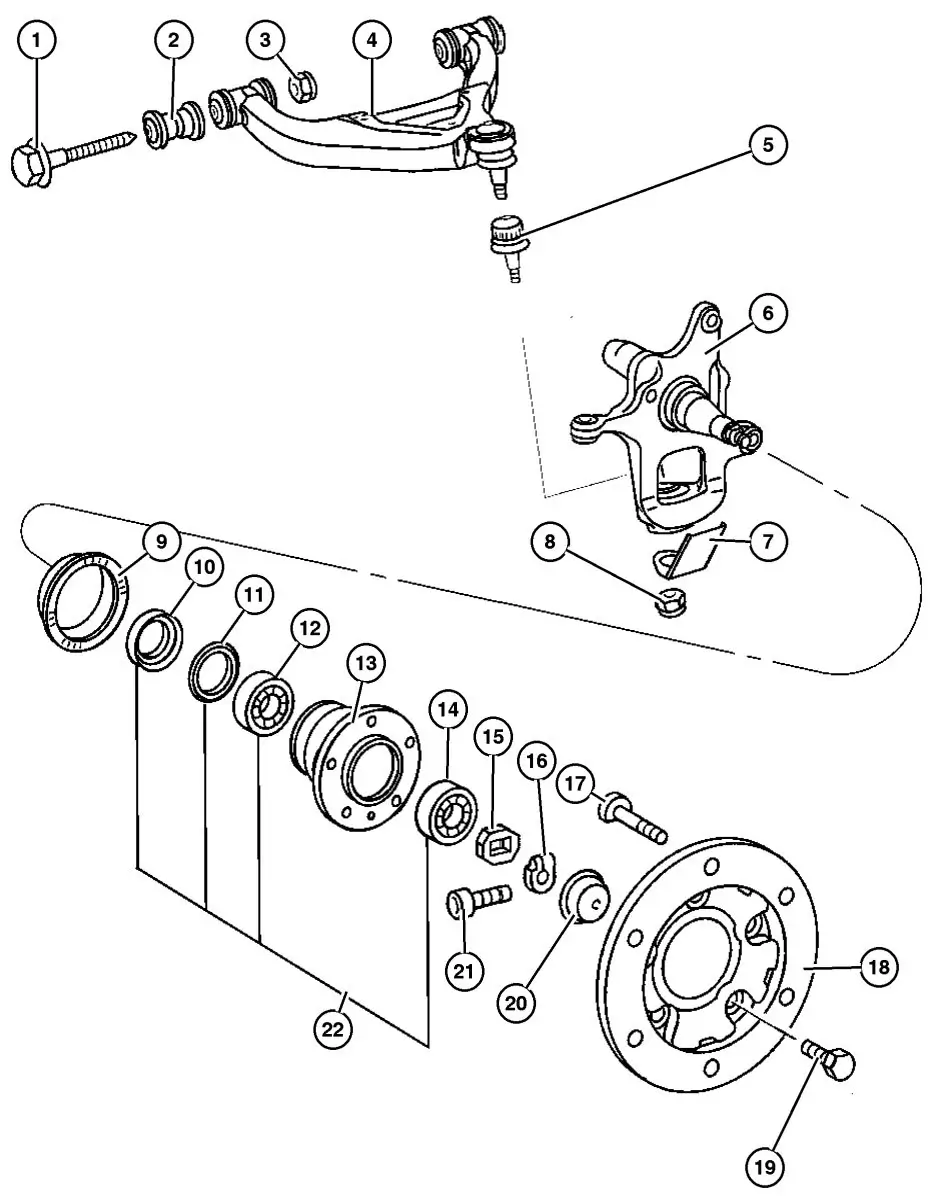

Sprinter T1N Front Control Arms, Knuckles, Bearings, and Hubs Diagram
Figure 002-110: Front Control Arms, Knuckles, Bearings, and Hubs
Front Control Arms, Knuckles, Bearings, and Hubs Parts List
Item Mopar P/N MB P/N QTY Line Series Body Engine Trans Trim Description
1 5133819AA A9019900312 4 2, 3, 6, 7 Bushing
2 5133818AA A9013330214 2 Bolt, Hex Head
3 6104719AA N913023014003 2 2,3,6,7 L 01,02,06,11,12,14,15,16,51,52,54,55,56 Control Arm Nut
4 5136057AB A9043301707 1 2, 3, 6, 7 Right - Front Lower Control Arm
5104578AB A9043301607 1 2, 3, 6, 7 Left - Front Lower Control Arm
5 5139559AA A9013331227 2 Front Ball Joint, Lower Control
6 5135232AA A9033320002 1 2,6 L 01, 02, 06, 11, 12, 14, 15, 16, 51, 52, 54, 55, 56 Right - Front Arm Knuckle
5135233AA A9033320101 1 2,6 L 01, 02, 06, 11, 12, 14, 15, 16, 51, 52, 54, 55, 56 Left - Front Arm Knuckle
5139492AA A9043320502 1 3, 7 Right - Front Arm Knuckle
5104579AA A9043320701 1 3, 7 Left - Front Arm Knuckle
7 5136122AA A9014210220 2 Control Arm Plate
8 5136123AA N913004020003 2 2,3,6,7 Ball Joint Nut
9 5139358AA A9013340115 2 Tone Ring
10 5103901AB A0199973747 2 Hub Seal
11 5139359AA A0059971740 2 Wheel Hub Seal
12 5103779AA A0019806302 2 Axle, Inner Bearing
13 5104556AA A9023340301 2 Front Wheel Hub - Up To Axle S482213/Y422059
5139360AA A9023340401 2 Front Wheel Hub - From Axle S482214/Y422060
14 5103869AA A0069815805 2 Axle, Outer Bearing
15 5103956AA A6013345162 2 Thrust, Front Washer
16 5097843AA A1163340372 2 Nut
17 51392905AA --- 2 3, 7 Bolt
18 5139903AA A9043300044 2 3, 7 Axle Output Flange
19 6104258AA N910105014010 12 3, 7 L Hex Flange Head Screw
20 5103914AA A1083340025 2 Wheel Hub Grease Cap
21 5104617AA N000912006176 2 Screw
22 5103579AA A9013301025 1 Hub and Bearing Package, Kit Up to Axle S231915/Y245976
5139357AA A6043300025 1 Hub and Bearing Package, Kit From Axle S4231916/Y245977

Front Shocks

Find part numbers and specifications for front shock absorbers and related components for the Sprinter T1N.

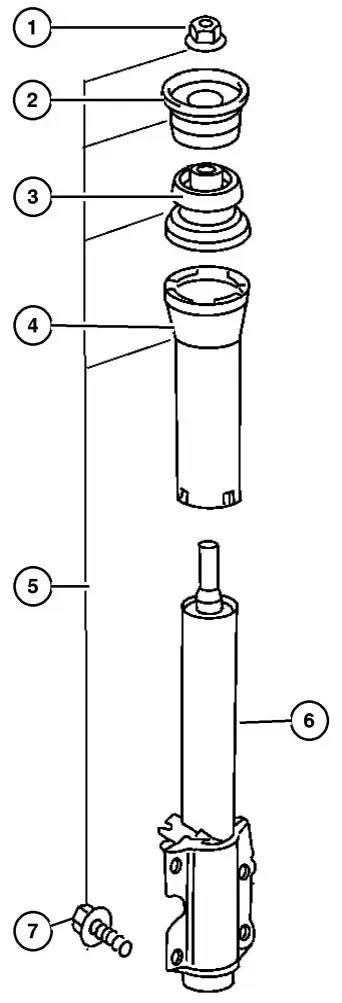

Sprinter T1N Front Shocks Diagram
Figure 002-120: Front Shocks
Front Shocks Parts List
Item Mopar P/N MB P/N QTY Line Series Body Engine Trans Trim Description
1 5125762AA A0009909750 2 2,6, 3,7 L 01,02, 06,11,12, 14,15,16,51,52,54,55,56 Nut
2 5118718AA A9013230085 2 Shock Absorber Bushing
3 5118722AA A9013231185 2 2,6, 3,7 L 01,02, 06,11,12, 14,15,16,51,52,54,55,56 Shock Absorber Bushing
4 5118728AA A9013230198 2 2,6, 3,7 L 01,02, 06,11,12, 14,15,16,51,52,54,55,56 Shock Absorber Dust Shield
5 5133869AA A9013202830 2 2,6, 3,7 L 01,02, 06,11,12, 14,15,16,51,52,54,55,56 Shock Parts Kit
6 5104063AA A9013201830 2 2,6 L 12,15 Shock Absorber
5139548AA A9043202730 2 2,6 L 12,15 Shock Absorber [3AT,SHA]
5128502AA A9013202130 2 3,7 L 12,15,16 Shock Absorber
7 5125699AA A0069901801 8 12,15,16 Strut to Knuckle, Mounting Screw

Front Stabilizer Bar

Parts list and specifications for the front stabilizer bar and related components for the Sprinter T1N.

Sprinter T1N Front Stabilizer Bar Diagram
Figure 002-130: Front Stabilizer Bar
Front Stabilizer Bar Parts List
Item Mopar P/N MB P/N QTY Line Series Body Engine Trans Trim Description
1 5104060AA A9013200389 1 2,3,6,7 L 01,02,06,11,12,14,15,16 Right Sway Bar Link [SHA,SHJ]
5127277AA A9053200589 1 2,3,6,7 L 11,12,14,15,16
5104059AA A9013200289 1 2,6,3,7 L 01,02,06,11,12,14,15,16 Left Sway Bar Link [SHA,SHJ]
5127276AA A9053200489 1 2,6 L 11,12,14,15,16
2 5104066AA A9013230285 4 2,3,6,7 L 01,02,06,11,12,14,15,16,51,52,54,55,56 Bushing
3 5104677AA N913023008002 2 2,3,6,7 L 01,02,06,11,12,14,15,16,51,52,54,55,56 Nut
4 5104576AA A9043230065 1 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Front Sway Bar [SHA]
5128572AA A9013230065 1 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Front Sway Bar [SHJ]
5 5104577AA A9043230085 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Sway Bar Bushing [SHA]
5104065AA A9013230185 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Sway Bar Bushing [SHJ]
5127273AA A9053230485 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Sway Bar Bushing [SHB]
6 5104067AA A9013230288 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Sway Bar Retainer [SHA,SHJ]
5127274AA A9053230288 2 2,3,6,7 L 11,12,14,15,16 Sway Bar Retainer [SHB]
7 5104656AA N304017008023 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Bolt

Front Spring

Parts list and specifications for front spring components for the Sprinter T1N.

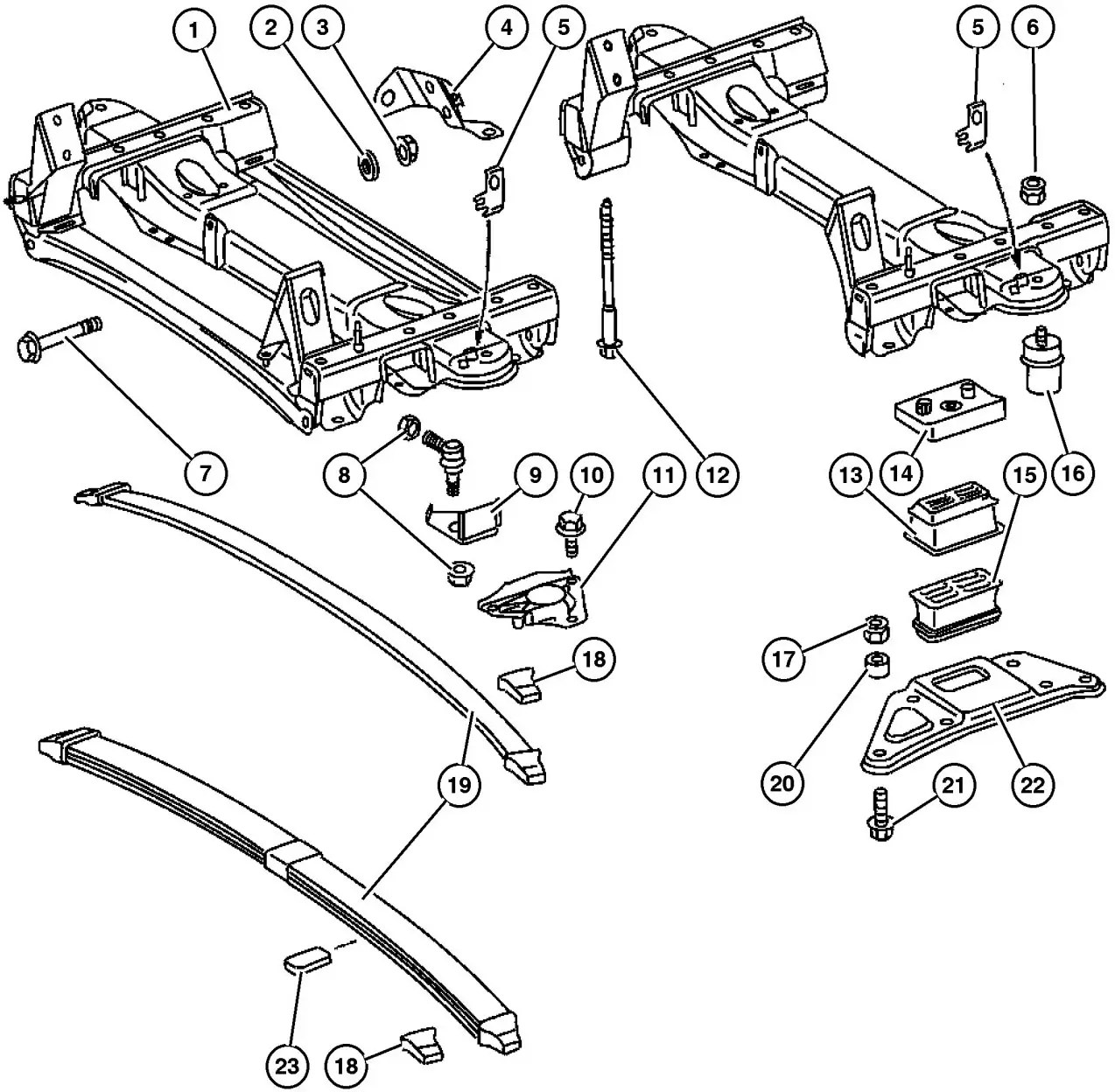

Sprinter T1N Front Spring Diagram
Figure 002-140: Front Spring
Front Spring Parts List
Item Mopar P/N MB P/N QTY Line Series Body Engine Trans Trim Description
1 5104074AA A9019900312 1 2,6 Front Axle Crossmember
2 5139740AA A9043300106 1 Washer (Not Serviced)
3 6104718AA N913023012002 2 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Nut
4 5119553AA A9014660640 2 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Steering Gear Bracket
5 --- 2 L Bracket (Not Serviced)
6 5132896AA N913025010001 6 2,6 L 11,12,14,15,16,51,52,54,55,56 Nut
7 5125714AA A9019900101 4 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Screw
8 5125761AA A0009909450 2 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Nut
9 5119249AA A9054210020 2 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Backing Plate
10 5126233AA N910106010039 6 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Bolt
11 5104064AA A9013220231 1 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Right Sway Bar Plate [SHA,SHJ,WDG]
5118707AA A9013220131 1 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Left Sway Bar Plate [SHA,SHJ,WDG]
5118705AA A9013220031 1 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Right or Left, Without [SHA,SHJ,WDG]
12 5125726AA A0019903712 8 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Hex Screw and Washer
13 5139190AB A9013222619 2 Spring Seat To Frame with SV#500323/03
5139558AA A9013221219 2 Spring Seat To Frame with SV#500323/02
14 5139554AA A9013220184 1 Right Spring Seat Shim
5139552AA A9013220084 1 Left Spring Seat Shim
15 5139189AA A9013222219 1 Right Spring Seat
5139188AA A9013222119 1 Left Spring Seat
16 5139555AA A9013220444 2 Suspension Jounce Bumper
17 6104717AA N913023010002 8 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 M10x1.5 Nut
6104718AA N913023012002 8 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 M12x1.5 Nut
18 5139556AA A9013221819 2 Spring Seat
19 5139112AA A9043200601 1 Front Leaf Spring
20 5139737AA A9023310050 4 Spring Bushing
21 6104233AA N910105012013 4 Bolt
22 5139187AA A9023310126 1 Right Suspension Plate
5139186AA A9023310026 1 Left Suspension Plate
23 --- 2 Shim (Not Serviced)
