T1N Sprinter Suspension - Wheel Alignment Guide

Comprehensive guide for wheel alignment on Sprinter T1N (Mercedes-Benz, Dodge, Freightliner), covering torque specifications, toe adjustment, and diagnostic procedures for optimal steering and tire wear.

Torque Chart

Torque specifications for wheel alignment components on the Sprinter T1N.

Torque Specifications for Wheel Alignment
Description N·m Ft. Lbs. In. Lbs.
Outer Tie Rod End Jam Nut 50 37 ---

Description

Wheel alignment ensures proper positioning of the wheels for efficient steering, directional stability, and minimal tire wear. This guide focuses on the Sprinter T1N’s alignment measurements, including caster, camber, and toe.

Key alignment measurements include:

  • Caster: The angle of the steering axis relative to vertical, affecting directional stability.
  • Camber: The tilt of the wheel relative to vertical, impacting tire contact with the road.
  • Toe: The angle of the wheels relative to the vehicle’s centerline, critical for straight-line driving.

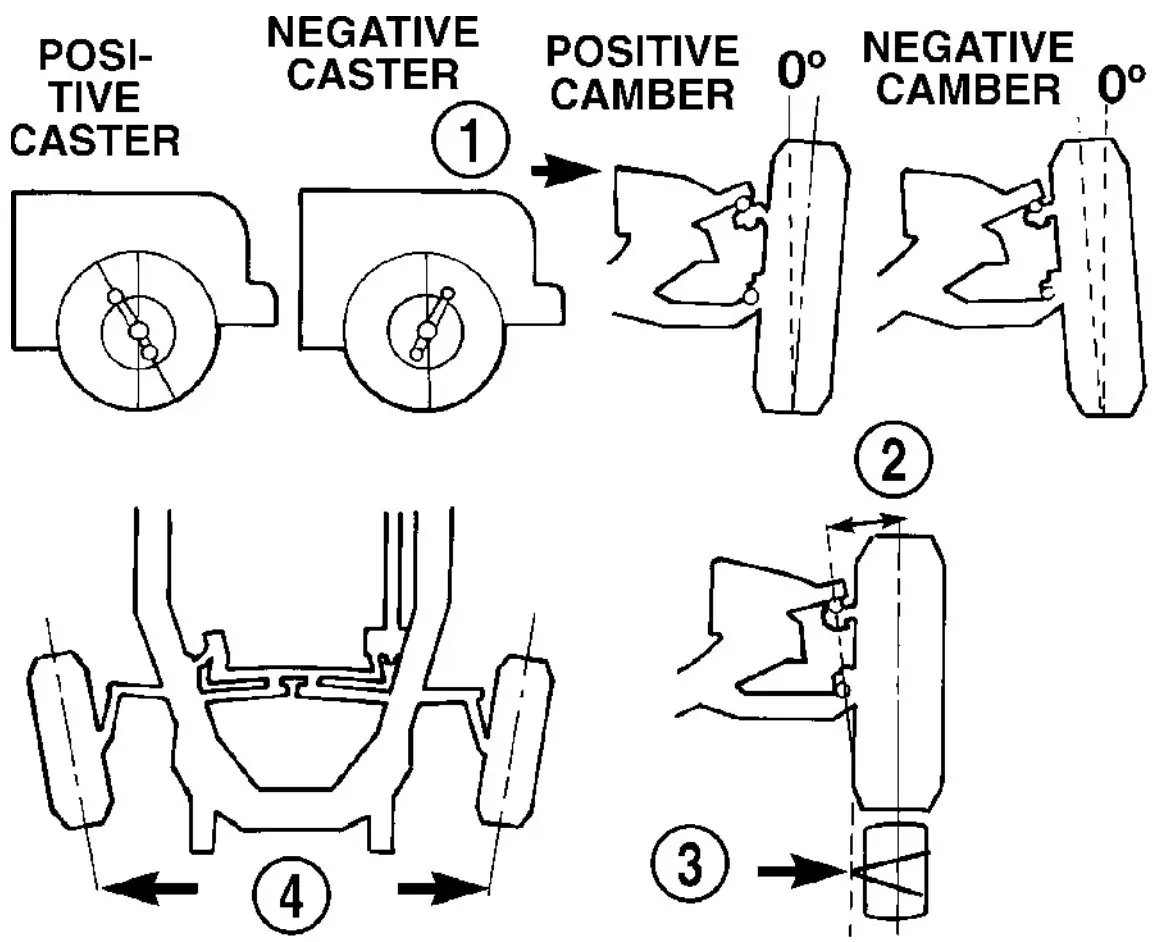

Sprinter T1N Wheel Alignment Measurements Diagram
Figure 1: Wheel Alignment Measurements
  1. Front of Vehicle
  2. Steering Axis Inclination
  3. Pivot Point
  4. Toe-In

Diagnosis and Testing - Pre-Alignment Inspection

Perform the following inspections and corrections before starting wheel alignment to ensure accurate results.

  1. Inspect tires for proper size, air pressure, and tread wear.
  2. Check front wheel bearings for wear or damage.
  3. Inspect front wheels for excessive radial or lateral runout and balance.
  4. Examine ball studs, linkage pivot points, and steering gear for looseness, roughness, or binding.
  5. Check suspension components for wear and noise.
  6. Road test the vehicle to identify any alignment-related issues.

Suspension and Steering System Diagnosis

Suspension and Steering Diagnosis Chart
Condition Possible Causes Correction
Front End Noise
  1. Loose or worn wheel bearing.
  2. Loose or worn steering or suspension components.
  1. Replace wheel bearing.
  2. Tighten or replace components as necessary.
Excessive Play in Steering
  1. Loose or worn wheel bearing.
  2. Loose or worn steering or suspension components.
  3. Loose or worn steering gear.
  1. Replace wheel bearing.
  2. Tighten or replace components as necessary.
  3. Replace steering gear.
Front Wheels Shimmy
  1. Loose or worn wheel bearing.
  2. Loose or worn steering or suspension components.
  3. Tires worn or out of balance.
  4. Alignment issues.
  1. Replace wheel bearing.
  2. Tighten or replace components as necessary.
  3. Replace or balance tires.
  4. Align vehicle to specifications.
Vehicle Instability
  1. Loose or worn wheel bearing.
  2. Loose or worn steering or suspension components.
  3. Incorrect tire pressure.
  4. Alignment issues.
  1. Replace wheel bearing.
  2. Tighten or replace components as necessary.
  3. Adjust tire pressure.
  4. Align vehicle to specifications.
Excessive Steering Effort
  1. Loose or worn steering gear.
  2. Column coupler binding.
  3. Incorrect tire pressure.
  4. Alignment issues.
  1. Replace steering gear.
  2. Replace coupler.
  3. Adjust tire pressure.
  4. Align vehicle to specifications.
Vehicle Pulls to One Side
  1. Incorrect tire pressure.
  2. Tire issues.
  3. Alignment issues.
  4. Loose or worn steering or suspension components.
  5. Radial tire lead.
  6. Brake pull.
  7. Weak or broken spring.
  1. Adjust tire pressure.
  2. Criss-cross front tires.
  3. Align vehicle to specifications.
  4. Tighten or replace components as necessary.
  5. Rotate or replace tire as necessary.
  6. Repair brake as necessary.
  7. Replace spring.

Standard Procedure - Toe Adjustment

The wheel toe position is the final adjustment for Sprinter T1N alignment, ensuring the steering wheel is centered and wheels are properly aligned.

  1. Start the engine and turn wheels both ways before straightening them. Secure the steering wheel with the front wheels in the straight-ahead position.
  2. Loosen the tie rod jam nuts.
  3. Adjust the wheel toe position by turning the inner tie rod as necessary.
  4. Tighten the tie rod jam nut to 50 N·m (37 ft. lbs.).
  5. Verify the toe specifications.
  6. Turn off the engine.

Alignment Specifications

Alignment specifications for front and rear wheels of the Sprinter T1N to ensure optimal performance and tire longevity.

Front Wheel Specifications

Front Wheel Alignment Specifications
Description Specification
Toe-In 0° (±0.16°)
Camber 0° (±0.75°)
Camber Left to Right Difference Max 1.33°
Caster 0° (±0.5°)
Steering Knuckle Inclination 0° (±0.5°)
Steering Knuckle Inclination Left to Right Difference Max 1°

Rear Wheel Specifications

Rear Wheel Alignment Specifications
Description Specification
Toe-In Max 0° (±0.25°)
Camber Max 0° (-0.66°/+0.33°)
Inclination of Rear Wheels (Individual Wheel Toe) 0° (±0.25°)
