T1N Sprinter Suspension - Parts Catalog

Front Control Arms, Knuckles, Bearings and Hubs

Figure 002-110 Front Control Arms, Knuckles, Bearings and Hubs

Figure 002-110 Front Control Arms, Knuckles, Bearings and Hubs

Item Mopar P/N MB P/N QTY Line Series Body Engine Trans Trim Description
1 5133819AA A9019900312 4 2, 3, 6, 7 BUSHING
2 5133818AA A9013330214 2 BOLT, Hex Head
3 6104719AA N913023014003 2 2,3,6,7 L 01,02,06,11,12,14,15,16,51,52,54,55,56 Control Arm NUT
4 5136057AB A9043301707 1 2, 3, 6, 7 Right - Front Lower Control Arm
5104578AB A9043301607 1 2, 3, 6, 7 Left - Front Lower Control Arm
5 5139559AA A9013331227 2 Front Ball Joint, Lower Control
6 5135232AA A9033320002 1 2,6 L 01, 02, 06, 11, 12, 14, 15, 16, 51, 52, 54, 55, 56 Right - Front Arm Knuckle
5135233AA A9033320101 1 2,6 L 01, 02, 06, 11, 12, 14, 15, 16, 51, 52, 54, 55, 56 Left - Front Arm Knuckle
5139492AA A9043320502 1 3, 7 Right - Front Arm Knuckle
5104579AA A9043320701 1 3, 7 Left - Front Arm Knuckle
7 5136122AA A9014210220 2 Control Arm Plate
8 5136123AA N913004020003 2, 3, 6, 7 Ball Joint Nut
9 5139358AA A9013340115 2 Tone Ring
10 5103901AB A0199973747 2 Hub Seal
11 5139359AA A0059971740 2 Wheel Hub Seal
12 5103779AA A0019806302 2 Axle, Inner Bearing
13 5104556AA A9023340301 Front Wheel Hub - Up To Axle S482213/Y422059
5139360AA A9023340401 2 Front Wheel Hub - From Axle S482214/Y422060
14 5103869AA A0069815805 2 Axle, Outer Bearing
15 5103956AA A6013345162 2 Thrust, Front WASHER
16 5097843AA A1163340372 2 Nut
17 51392905AA --- 3, 7 Bolt
18 5139903AA A9043300044 3, 7 Axle Output FLANGE
19 6104258AA N910105014010 12 3, 7 L Hex Flange Head Screw
20 5103914AA A1083340025 2 Wheel Hub Grease Cap
21 5104617AA N000912006176 2 Screw
22 5103579AA A9013301025 1 Hub and Bearing Package, Kit Up to Axle S231915/Y245976
5139357AA A6043300025 1 Hub and Bearing Package, Kit From Axle S4231916/Y245977

Front Shocks

Figure 002-120 Front Shocks

Figure 002-120 Front Shocks

Item Mopar P/N MB P/N QTY Line Series Body Engine Trans Trim Description
1 5125762AA A0009909750 2 2,6, 3,7 L 01,02, 06,11,12, 14,15,16 51,52,54,55,56 Nut
2 5118718AA A9013230085 Shock Absorber Bushing
3 5118722AA A9013231185 2,6, 3,7 L 01,02, 06,11,12, 14,15,16 51,52,54,55,56 Shock Absorber Bushing
4 5118728AA A9013230198 2,6, 3,7 L 01,02, 06,11,12, 14,15,16 51,52,54,55,56 Shock Absorber Dust Shield
5 5133869AA A9013202830 2,6, 3,7 L 01,02, 06,11,12, 14,15,16 51,52,54,55,56 Shock Parts Kit
6 5104063AA A9013201830 2 2,6 L 12,15 Shock Absorber
5139548AA A9043202730 2 2,6 L 12,15 Shock Absorber [3AT,SHA]
5128502AA A9013202130 2 3,7 L 12,15,16 Shock Absorber
7 5125699AA A0069901801 8 12,15,16 Strut to Knuckle, Mounting Screw

Front Stabilzer Bar

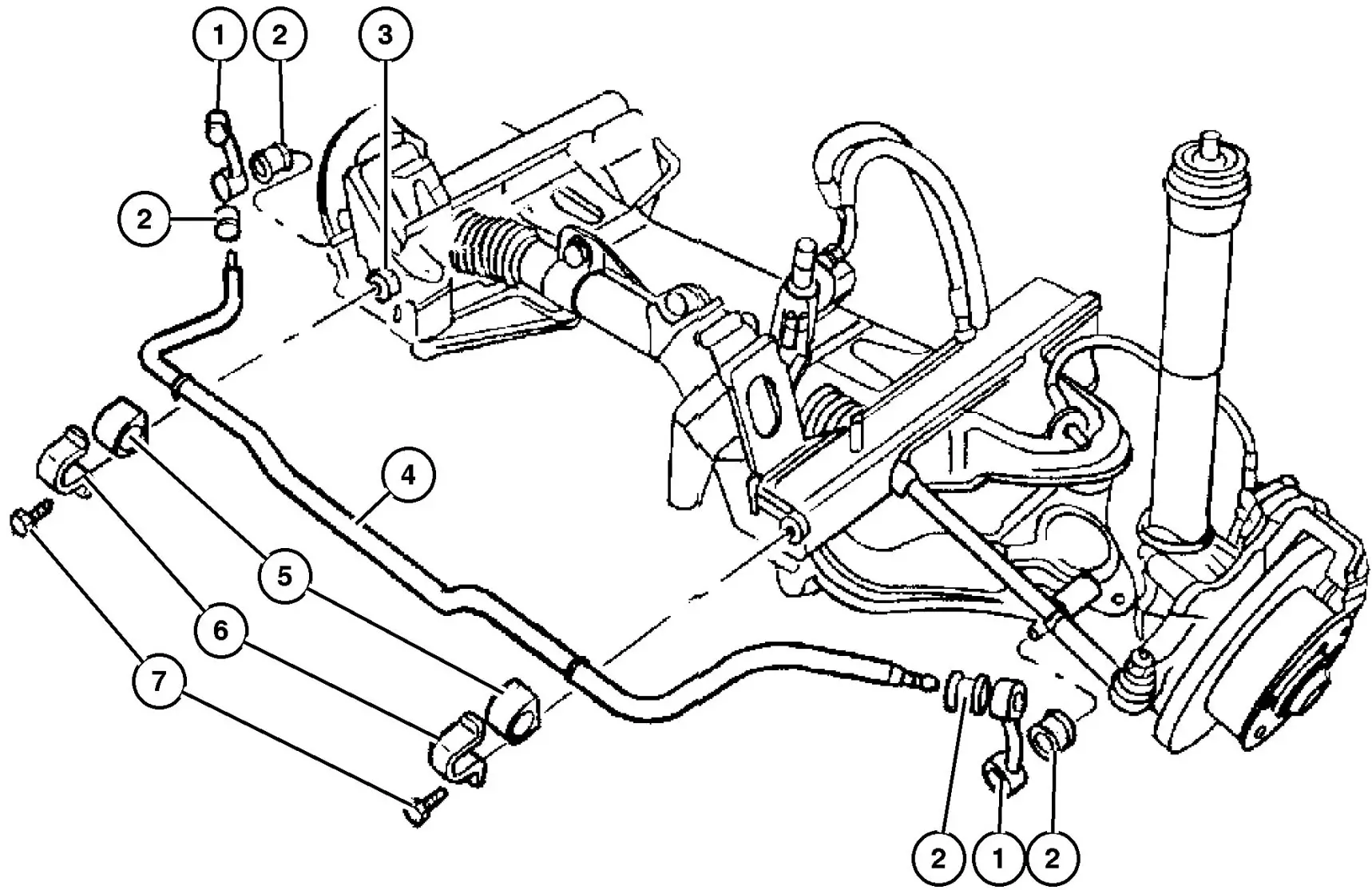

Figure 002-130 Front Stabilzer Bar

Figure 002-130 Front Stabilzer Bar

Item Mopar P/N MB P/N QTY Line Series Body Engine Trans Trim Description
1 5104060AA A9013200389 1 2,3,6,7 L 1,2,6,11,12,14,15,16 Right Sway Bar Link [SHA,SHJ]
5127277AA A9053200589 1 2,3,6,7 L 11,12,14,15,16
5104059AA A9013200289 1 2,6,3,7 L 1,2,6,11,12,14,15,16 Left Sway Bar Link [SHA,SHJ]
5127276AA A9053200489 1 2,6 L 11,12,14,15,16
2 5104066AA A9013230285 4 2,3,6,7 L 01,02,06,11,12,14,15,16,51,52,54,55,56 Bushing
3 5104677AA N913023008002 2 2,3,6,7 L 01,02,06,11,12,14,15,16,51,52,54,55,56 Nut
4 5104576AA A9043230065 1 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Front Sway Bar [SHA]
5128572AA A9013230065 1 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Front Sway Bar [SHJ]
5 5104577AA A9043230085 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Sway Bar Bushing [SHA]
5104065AA A9013230185 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Sway Bar Bushing [SHJ]
5127273AA A9053230485 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Sway Bar Bushing [SHB]
6 5104067AA A9013230288 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Sway Bar Retainer [SHA,SHJ]
5127274AA A9053230288 2 2,3,6,7 L 11,12,14,15,16 Sway Bar Retainer [SHB]
7 5104656AA N304017008023 2 2,3,6,7 L 01,02,11,12,14,15,16,51,52,54,55,56 Bolt

Front Spring

Figure 002-140 Front Spring

Figure 002-140 Front Spring

Item Mopar P/N MB P/N QTY Line Series Body Engine Trans Trim Description
1 5104074AA A9019900312 1 2,6 Front Axle Crossmember
2 5139740AA A9043300106 1 Washer (Not Serviced)
3 6104718AA N913023012002 2 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Nut
4 5119553AA A9014660640 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Steering Gear Bracket
5 --- L Bracket (Not Serviced)
6 5132896AA N913025010001 6 2,6 L 11,12,14,15,16,51,52,54,55,56 Nut
7 5125714AA A9019900101 4 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Screw
8 5125761AA A0009909450 2 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Nut
9 5119249AA A9054210020 2 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Backing Plate
10 5126233AA N910106010039 6 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Bolt
11 5104064AA A9013220231 1 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Right Sway Bar Plate [SHA,SHJ,WDG]
5118707AA A9013220131 1 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Left Sway Bar Plate [SHA,SHJ,WDG]
5118705AA A9013220031 1 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Right or Left, Without [SHA,SHJ,WDG]
12 5125726AA A0019903712 8 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 Hex Crew and Washer
13 5139190AB A9013222619 2 Spring Seat To Frame with SV#500323/03
5139558AA A9013221219 2 Spring Seat To Frame with SV#500323/02
14 5139554AA A9013220184 1 Right Spring Seat Shim
5139552AA A9013220084 1 Left Spring Seat Shim
15 5139189AA A9013222219 1 Right Spring Seat
5139188AA A9013222119 1 Left Spring Seat
16 5139555AA A9013220444 2 Suspension Jounce Bumper
17 6104717AA N913023010002 8 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 M10x1.5 Nut
6104718AA N913023012002 8 2,3,6,7 L 1,2,6,11,12,14,15,16,51,52,54,55,56 M12x1.5 Nut
18 5139556AA A9013221819 2 Spring Seat
19 5139112AA A9043200601 1 Front Leaf Spring
20 5139737AA A9023310050 4 Spring Bushing
21 6104233AA N910105012013 4 Bolt
22 5139187AA A9023310126 1 Right Suspension Plate
5139186AA A9023310026 1 Left Suspension Plate
23 --- Shim (Not Serviced)
